The cheapest mini split to install yourself is a pre-charged, single-zone mini split kit, which lets you add cooling and heating to one room without paying a contractor $3,000 to $6,000. Installing a mini split yourself can save labor costs that often eat up half the project budget. But the sticker price on the box isn't the whole story, and skipping steps on sizing, permits or wiring will cost you more later than doing it right the first time.
Bottom-line recommendation: For a single room, buy a 9,000 to 12,000 BTU pre-charged DIY kit, hire a licensed electrician for the dedicated circuit, and pull the required permits. Your realistic all-in floor is about $1,200 to $1,500 in most U.S. markets.
When professional installation is nonnegotiable:
-
Multi-zone systems (multiple indoor units on one condenser)
-
Refrigerant circuits that must be field charged, brazed or sucked out with a pump need special tools and training.
-
There are second-story penetrations, or there are long line set runs.
-
Any jurisdiction where the electrical code requires a licensed electrician to pull the permit
-
Warranty language that clearly says you need a certified technician
Section 01
How We Define Cheapest Mini Split System
"Cheapest" in this guide can mean total installed cost - equipment, electrical work, permits, accessories and any tools you don't already own. A unit that sells for $600 but needs a vacuum pump, gauges and a licensed HVAC tech to handle refrigerant isn't cheaper than a $1,400 pre-charged kit you can connect yourself.
The tradeoffs are real. Mini splits can hit over 22 SEER2, but the highest-efficiency models cost more up front. A low-SEER unit runs longer, uses more energy and dehumidifies poorly. They can last 15 to 20 years with proper maintenance, so a slightly higher buy price often pays back in lower electricity bills and fewer service calls. Warranty matters too - some brands void coverage completely if a licensed pro didn't do the install.
The key distinction for you might be pre-charged kits versus field-charged systems. True DIY mini splits have pre-charged line sets and quick-connect fittings, and the refrigerant is already sealed inside. You torque the connections and the circuit is live. Field-charged units need a vacuum pump, manifold gauges, flaring tools and sometimes EPA 608 certification. That gap in complexity is the difference between a weekend project and a job that demands professional installation.
Our Data Insights For This Guide
We size from the cooling load. Our calculator uses indoor conditions of 75°F and 50% relative humidity, and it pulls the outdoor design temperature from your ZIP code. The heating math is in the code but switched off, because you pick a mini split on its cooling capacity first. For cold climates, you need to check heating performance separately against the unit's published capacity at your local winter design temperature.
Here is what recent research shows:
-
Cold-weather capacity: Across ENERGY STAR certified mini split combinations, the middle unit has kept about 84% of its 47°F heating capacity at 5°F, and about one in five has listed as much or more capacity at 5°F than at 47°F.
-
Elevation effect: NREL measured a 7.4% average heating capacity loss and a 9.1% COP loss for a mini split running at Golden, Colorado's elevation compared to what it would do with sea-level-equivalent airflow.
-
Setback strategy: In a three-year DOE study of mini splits in eight Massachusetts homes, a house run at a constant set point used about 54% of the heating electricity of a similar house whose owner switched the unit on and off. Constant temperature won.
Section 02
Where DIY Mini Splits Make Sense
Single-zone systems condition one room with one air handler, so they are a natural fit for spaces that sit outside your home's existing ductwork. The most common DIY-friendly applications:
-
Room additions and sun rooms - no ducts to extend, one or two accessible walls, and a clear path for the line set.
-
Guest rooms, bonus rooms and apartments above a garage - the rest of the house's central system often does a poor job of serving these spaces.
-
Older homes without ductwork, where adding ducts would mean ripping into walls and ceilings.
Mini splits eliminate duct loss, saving 25 to 40% of the energy that central forced-air systems waste when they push conditioned air through the attic or crawlspace. So how big is that efficiency gain? It is especially noticeable in a building where the ducts were never designed to reach it.
Single-zone mini splits are ideal if you need to cool just one room. If you need to cool or heat more than one room, multi-zone systems cover multiple rooms with separate air handlers and can support 2 to 8 indoor units - but the condenser work and refrigerant piping for those setups usually exceeds DIY scope.
Cheapest DIY Mini Splits
Cheapest DIY Mini Splits and Kits
Some DIY mini split kits are designed so you can install them yourself. The cheapest equipment-only options, as of late 2026:
| Type | Capacity | Typical Price | DIY Friendly? |
|---|---|---|---|
| Pre-charged quick-connect kit | 9,000–12,000 BTU | $1,200–$1,900 | Yes |
| Budget pre-charged kit (e.g. Klimaire) | 12,000 BTU | \~$820 | Yes, fewer features |
| Pro-grade field-charged unit | 12,000 BTU | $550–$900 | No - needs HVAC tools |
| High-capacity DIY kit | 18,000+ BTU | $2,500–$3,500+ | Partial - 230V circuit |
Pre-charged kits are the recommendation for most DIY installers. You avoid the vacuum pump, manifold gauges, and flaring that field-charged units demand. Estimated savings versus a full professional installation range from $2,000 to $4,000 depending on your market.
Size a Mini Split With a Calculator
Before you shop, size the space. Sizing starts with square footage, but that number alone is just a starting point. Mini splits are rated in tons and measured in BTUs, and a 1-ton mini split removes 12,000 BTUs per hour. A 500 to 800 sq ft room usually needs 18,000 BTUs, but the real answer depends on climate, insulation, windows and ceiling height.
Enter your ZIP code, room dimensions and ceiling height into a calculator that is based on Manual J. Manual J is the U.S. standard for residential load calculations. It factors in outdoor design temperature, window area and direction, insulation levels, air leakage, internal heat gains and ventilation. A square-foot rule of thumb fails in rooms with tall ceilings, poor insulation or heavy sun exposure.
-
You are in climate zone 5 through 7.
-
Local incentive programs or permits require a certified load calculation
How To
DIY Mini Split Installation Steps
Installing a mini split is 90 to 100% DIY for people who are handy. Most of them run without needing specialized tools when you choose a pre-charged kit. Here is the sequence:
-

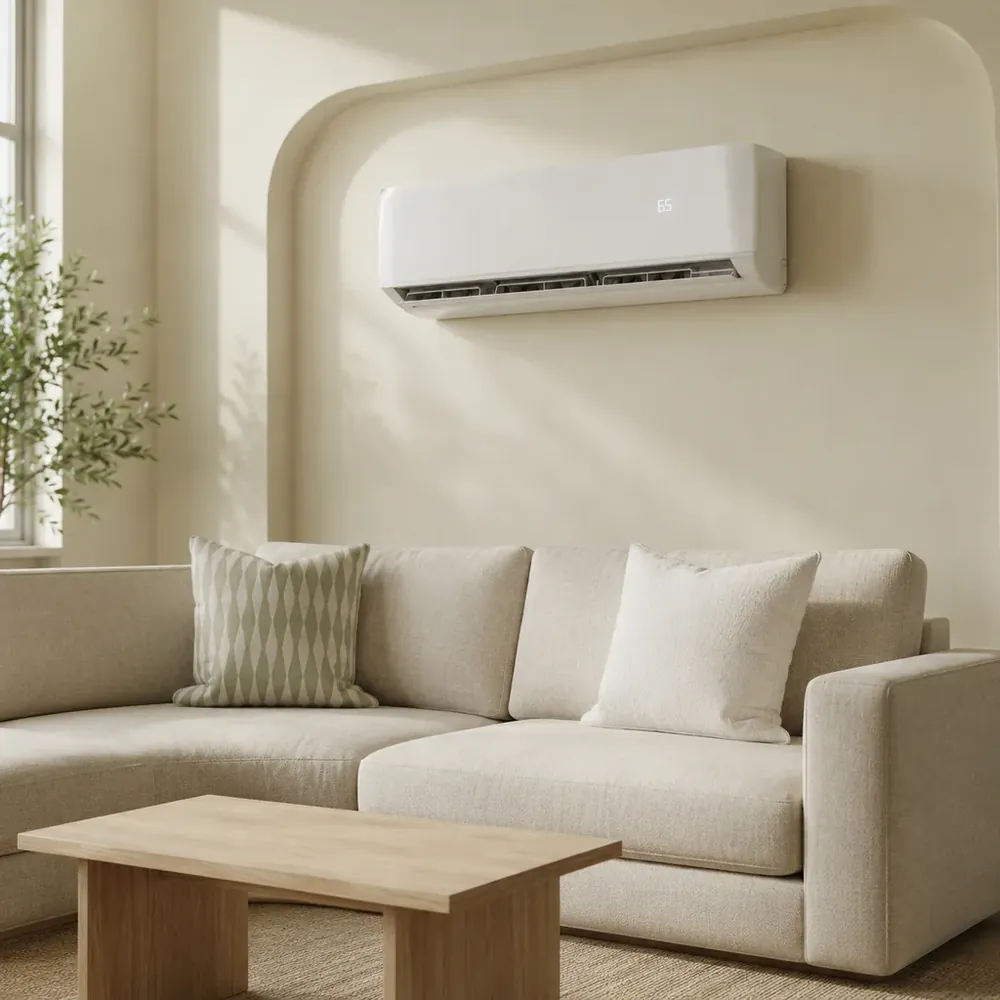

Mount the indoor air handler. Locate a structural stud or use the mounting bracket that is included. You'll want to keep the space the manufacturer says you need on all sides - usually 6 inches at top, 4 inches on each side, and 6 ft of free space in front.
-
Mount the outdoor condenser. Place it on a level concrete pad or wall bracket at ground level. It is important to install the outdoor unit at ground level - avoid locations where snow, leaves or fences block airflow.
-
Drill the wall hole. Mini splits need a 3-inch hole in the wall for installation. Angle the hole slightly downward toward the outside so condensate drains by gravity. You'll want to use a proper sleeve and seal the penetration for air and water tightness.
-
Route the pre-charged line set. Pass the line set, condensate drain and control wiring through the hole. Connect the indoor unit to the outdoor unit via quick-connect fittings and torque to the manufacturer's spec. Avoid kinks - keep the minimum bend size that is printed in the manual.
-
Complete electrical connections. Mini splits may need 115V or 230V depending on the model. Run a dedicated circuit with the correct wire gauge, install a disconnect box near the outdoor unit, and follow local code. This step almost always needs a licensed electrician.
-
Run system startup and leak checks. Power on, test both cooling and heating modes, verify temperature drop and rise at the air handler, and check all connections for leaks. Proper drainage is essential for mini split systems to function - confirm condensate flows freely before you close up the line set cover.
Operating Cost
Cost Breakdown for the Cheapest Mini Split to Install Yourself
Here is where the money goes on a typical single-zone install you do yourself:
| Item | Cost Range |
|---|---|
| Pre-charged DIY kit (9,000–12,000 BTU) | $820–$1,900 |
| Electrician (dedicated circuit + disconnect) | $200–$900 |
| Permit and inspection fees | $50–$400 |
| Tools (drill, hole saw, torque wrench, level) | $50–$150 |
| Vacuum pump and gauges (if field-charged) | $150–$450 |
| Line set cover, condensate pump, misc. parts | $30–$150 |
| Total DIY estimate | $1,100–$2,500 |
| Contractor full install comparison | $3,000–$6,000 |
The gap between DIY and contractor cost is $2,000 to $4,000 in most markets. That difference is almost entirely labor - HVAC installers typically bill 3 to 10 hours for a single-zone job. You absorb that time yourself over a weekend, but you still pay the electrician.
Don't forget warranty and service costs. If the company needs a licensed install for warranty coverage, a future compressor failure could land on you. Read the warranty PDF before you buy, and keep receipts and photos of every step.
DIY Mini Split Tools
DIY Mini Split Tools and Upgrades
-
Drill and 3.5-inch hole saw
-
Torpedo level
-
Torque wrench (specified by manufacturer)
-
Stud finder
-
Caulk and foam sealant
-
Indoor mounting bracket
-
Condensate drain line or condensate pump (if you have no way for water to drain by gravity)
-
There is a disconnect box and wiring (per what the electrician says you need).
-
Wall sleeve and trim ring
-
Anti-vibration pads under the condenser
If your kit is not pre-charged, add a vacuum pump and manifold gauges to the tool list - or rent them, which many companies now offer for about $50 to $75 per day.
Section 07
When Not To DIY on Safety, Code and Warranty
Three situations where you should wait and call a professional:
-
Refrigerant work. Opening, charging or getting refrigerant back out needs EPA 608 certification. Professional installation is recommended for refrigerant line work - mistakes introduce moisture into the circuit, which damages the compressor and tanks efficiency.
-
Electrical code. Local municipalities may require permits for HVAC installations. Many jurisdictions require a licensed electrician for any 240V circuit or work inside the main panel. DIY mini split installation can void warranties if not followed correctly, and a failed inspection can force you to tear out and redo the wiring.
-
Manufacturer warranty. Some brands and models clearly state that warranty coverage needs install by a certified technician. Other brands accept homeowner installation as long as a licensed electrician did the electrical work. The distinction is in the warranty PDF - not on the product page. You'll want to check before you ship the unit to your house.
Picking the Right Size
Picking the Right Size for Room Additions
Recommend sizing from a calculated cooling load, not just square footage. A 300 sq ft insulated sunroom facing north and a 300 sq ft garage with a west-facing metal roof need very different capacities.
-
Use your cooling load estimate as the primary driver for unit choice. If you live in a cold climate, verify the unit's heating capacity at your local winter design temp (often 5°F). Mass Save data shows two units both labeled "12,000 BTU in name only" can deliver anywhere from 8,400 to 17,000 BTU at 5°F.
-
Larger rooms over 600 sq ft may need dual-zone systems. Splitting the space between two indoor units gives more airflow and more even temperature distribution. Mini splits have independent climate control for each room when set up this way.
Section 09
Final Checklist Before You Buy or Install a DIY Mini Split
Before anything ships to your door, you'll want to walk through this list:
-
[ ] Capacity check. Does the unit's cooling BTU rating meet or slightly exceed your calculated cooling load? If you plan to use it for primary heat in winter, confirm the unit's heating capacity at your coldest expected outdoor temperature.
-
[ ] Permits and electrical. Call your local building department. Confirm whether you need a mechanical permit, an electrical permit or both. Budget $50 to $400 for fees.
-
[ ] Warranty terms. Read the manufacturer's warranty for DIY installs. Note which steps (if any) must be done by a licensed technician. Keep every receipt and take photos.
-
[ ] Written plan. List every step, every tool and every part before you start. You'll want to estimate your time - most handy homeowners finish a single-zone pre-charged install in 6 to 10 hours, not including the electrician's visit in the weeks before or after.
The cheapest mini split to install yourself is the one that is correctly sized for your room, bought as a pre-charged kit, and wired safely to code. Save money on labor, not on sizing or safety. Run your cooling load calculation first, read the warranty second and pick up the drill third.
