Adding a room to your house creates a problem your existing system wasn't designed to solve. Central air conditioning and furnaces rarely have enough spare capacity or ductwork to reach a new sunroom, bonus room, or garage conversion-and extending ductwork through finished walls is expensive and often impractical, given that ductwork in traditional HVAC systems can lose about 30% of energy before conditioned air reaches the room. Ductless mini split heat pumps provide precise zone control and high efficiency without tearing open ceilings, and mini splits can be installed without ductwork, simplifying retrofits considerably. They can also be up to 30% more energy-efficient than traditional HVAC systems, which matters when that addition becomes your daily home office.
Section 01
How We Picked the Best Mini Splits
Every model on this list was evaluated for how it performs in a single new space added onto an existing house, not as part of a whole-home system. Additions like bonus rooms, sunrooms, attic and garage conversions and in-law suites have odd traits that generic "best mini split" lists ignore: thinner insulation than the main house, more glass, exposed roof decks and sometimes no connection to the central air at all.
We assume US climates and code-level construction from about 1980 through 2025. Many additions are built onto older homes, so the quality of the thermal envelope can vary a lot. Some are well-sealed and insulated to current code. Others might be barely better than an enclosed porch. Our picks include models that can work for both scenarios.
Key Evaluation Criteria
Here's what we've looked at for each pick:
-
Capacity range and modulation. Home additions usually need about 20 to 25 BTUs per square foot for heating and cooling as a rough starting point. Most additions at 150–700 sq ft land in the 9,000 to 18,000 BTU/h single-zone range. Most mini splits range from 9,000 to 24,000 BTU. Some can cool rooms from 9,000 to 36,000 BTU. Proper sizing needs a Manual J load calculation to figure out BTU capacity, because relying on square footage alone isn't recommended due to factors like window area, insulation and which way the room faces. A system that's too small will run non-stop, while an oversized system causes short cycling that wastes energy and ruins humidity control.
-
Cold-climate performance. For additions used year-round in zones 4–7, rated heating output at 5°F and the lowest operating temperature matter. ASHRAE's heating design temperature is 15.6°F for Salt Lake City but drops to −37.6°F for Fairbanks, so your addition's location sets how hard the heat pump works in winter. Cold-climate models that are built for low ambient temperatures operate efficiently in freezing conditions that would shut down a standard unit.
-
Energy efficiency. We looked for SEER2 ratings of 20 or higher where possible and at least 16 for budget picks. Mini splits have SEER ratings that usually range from 17 to 23 across the market. HSPF2 ratings show heating efficiency. Higher ratings suggest better performance, so we liked units with HSPF2 of 9 or above for cold-climate picks. Higher efficiency pays off faster in heavily used spaces like home offices and studios. Energy-efficient models may qualify for local utility rebates or federal energy tax credits.
-
Voltage and electrical requirements. We prefer models that offer both 115V for small additions and 208/230V options so you can avoid panel upgrades when the addition is small. Mini splits need a dedicated electrical line for installation no matter what the voltage is.
-
Installation flexibility. Indoor unit styles like wall-mounted, floor-mounted and ceiling cassette matter for tricky spaces. A knee-wall attic needs something different than an open great room.
-
Noise levels. For bedrooms and offices, we looked for indoor sound in the low- to mid-20s dB(A) on low fan, with outdoor units ideally under 55 dB(A).
-
Reliability, warranty and support. Compressor warranties of 10–12 years and strong US contractor networks are a factor. Mini splits usually last between 10 to 15 years, so warranty coverage matters.
-
DIY vs. professional installation. We include one DIY-friendly option but note the tradeoffs. Installation methods vary between professional services and DIY kits, which affects costs and complexity. Installation costs for mini splits can range from $2,000 to $8,000 depending on the system and approach. Of the picks here, seven mini-split models need professional installation for full warranty coverage.
Best 7 Mini Splits
Best 7 Mini Splits for Home Additions in 2026
1. Cold-Climate Inverter Mini Split
This is the top pick for additions in cold regions that must heat reliably below 0°F. Think a bonus room over the garage in Minneapolis or a finished attic in Burlington, Vermont.
Why It Stands Out
It maintains a high percentage of its rated heating capacity at 5°F. Some Mitsubishi units deliver about 119% of their rated output at that temperature, and can still produce usable heat at −13°F to −22°F. That makes it dependable as the sole heat source in an over-garage room or attic suite where the house furnace doesn't reach.
Best For
-
Year-round over-garage rooms, attic suites and overhang additions in climate zones 5–7 where the central furnace doesn't reach.
-
Home offices that must stay comfortable on the coldest mornings without space heaters.
Key Strengths
-
Wide cooling capacity range (9k–24k BTU/h) covering about 150–900 sq ft additions when correctly sized via a load calc.
-
Excellent low-temperature heating performance backed by cold-climate testing data.
-
High SEER2 (some sizes reach ~29.9) and HSPF2 (~12) compared with standard heat pumps, delivering better efficiency across the season.
-
Very quiet indoor units. Premium models hit 19–22 dB(A) on quiet mode, which is suitable for bedrooms.
-
Mitsubishi mini-splits have a 12-year limited warranty on the compressor.
Possible Limitations
-
Higher upfront equipment and installation cost than mid-tier mini split systems.
-
Generally needs 208/230V and a dedicated circuit. It's not ideal if your panel is maxed out and the addition is small.

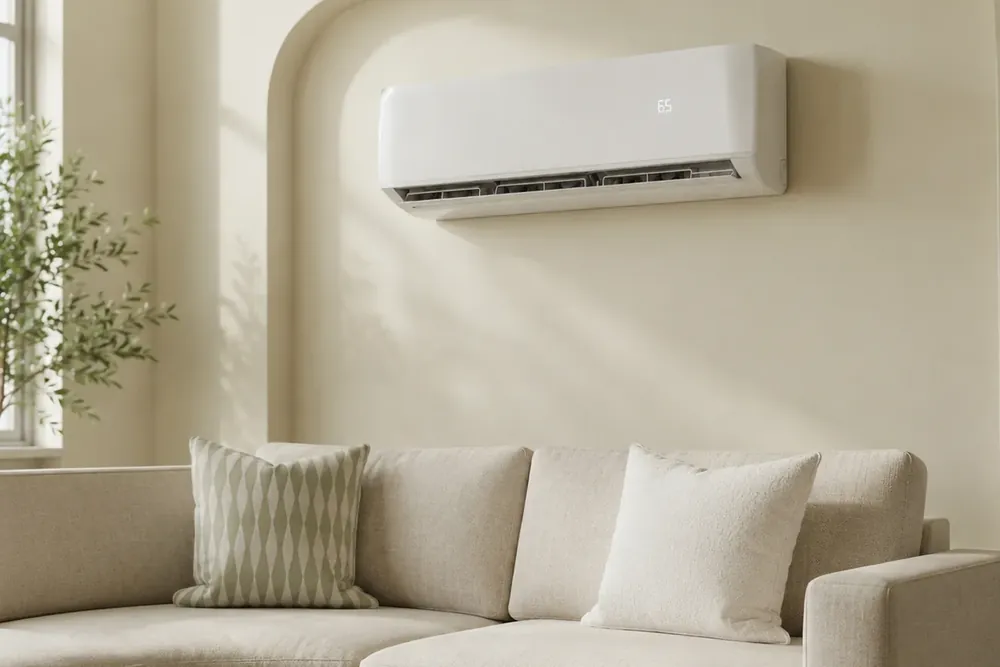

2. Wall-Mounted System for Mild to Hot Climates (e.g., Fujitsu or Daikin Single-Zone Inverter)
The best all-around choice for additions in most of the US where winter lows rarely stay below about 15°F. This category includes a range of mini split brands with strong wall-mounted options.
Why It Stands Out
It hits a good balance of price, SEER2 efficiency (20+ on common sizes), and quiet operation. The Fujitsu Altair 500 Series, for example, has SEER2 ratings between 21 and 26 depending on size. With the LG Artcool Deluxe KNSAL series, you get even higher numbers, with a SEER2 rating between 25.5 and 27. Both deliver strong cooling and heating mode performance without the premium price of a hyper-heat unit.
Best For
-
Bedroom and home-office additions in cities like Raleigh, Atlanta, Sacramento or Dallas.
-
In-law suites that need separate temperature control from the main house. Ductless systems offer independent temperature control for specific areas.
Key Strengths
-
Strong dehumidification for sticky climates. High humidity is common in closed-door bonus rooms with limited air exchange.
-
Multiple fan speeds and "dry" cooling mode options that help in glassy sunrooms without over-cooling.
-
Good compatibility with third-party smart controllers for scheduling and remote control.
Possible Limitations
-
Heating capacity drops off in the teens. You may need supplemental heat during colder snaps if it's used as the sole heater.
-
Primarily wall-mount indoor units. They're less flexible for low knee walls or complicated rooflines.
3. 115V Compact Mini Split for Small Additions (e.g., 9k–12k BTU 115V Single-Zone)
The go-to option when you're adding a small 120–350 sq ft space and don't want to upgrade the electrical panel.
Why It Stands Out
It runs on a dedicated 115V circuit, which makes it easy to add to older homes where the existing panel has limited capacity. There's no need for new 240V electrical work or a panel swap.
Best For
-
Small mudroom or entry additions.
-
Nursery or small bedroom bump-outs in one-story homes.
-
Compact home offices over attached garages where conduit runs are short.
Key Strengths
-
Lower equipment cost and small installation complexity compared to larger 230V systems.
-
A 12,000 BTU unit covers 350 to 550 square feet, which is the capacity sweet spot that avoids gross oversizing for 150–300 sq ft rooms when sized via a calculator instead of picking "12,000 by default."
-
Quiet enough for sleeping spaces, usually mid-20s dB(A) on low fan.
Possible Limitations
-
Not suitable for larger spaces or very leaky additions. It may struggle in sunrooms with lots of glass and dark roofs.
-
Efficiency is often slightly lower than premium 230V high-SEER2 models.
4. Floor-Mounted Mini Split for Attic and Loft Additions
Floor-mounted air handlers solve a shape problem: where there's little wall height due to sloped ceilings, a standard wall head simply won't fit.
Why It Stands Out
It's blowing conditioned air along the floor, which helps even out temperature in attic conversions where hot air stratifies under the roof deck. Our calculator uses a 45°F effective temperature difference across a light roof and 60°F across a dark roof. Those sun-baked surfaces run far hotter than outside air, so floor-level delivery keeps occupants comfortable where they actually sit.
Best For
-
1.5-story Cape Cods finished into bedrooms where the only full-height walls are at the gable ends.
-
Loft offices made from existing vaulted living rooms.
Key Strengths
-
Installs on short knee walls or under dormer windows where standard 11–12-inch-tall wall heads won't fit. There just isn't enough space for a conventional unit.
-
Effective heating comfort at occupant level in rooms with very warm ceilings.
-
Some models offer dual airflow (top and bottom discharge) to reduce drafts and stratification.
Possible Limitations
-
Takes up low wall space you might want for furniture.
-
May collect more dust and need more frequent cleaning than high wall units.
5. Ceiling Cassette Mini Split for Open-Plan or Vaulted Additions
The best option for large, open additions where a wall-mount would look out of place or can't cover the living area evenly.
Why It Stands Out
Four-way airflow from the center of the room is distributing heating and cooling evenly in big, open-plan family room additions. You can connect multiple indoor units to one outdoor unit if you later expand, but for a single great-room addition, one well-placed cassette often handles it.
Best For
-
Great-room additions with vaulted ceilings and lots of glass on two or three sides.
-
Kitchen + dining + living "bump-outs" where you want little wall clutter.
Key Strengths
-
Discreet appearance with just a grille in the ceiling. It goes well with higher-end finishes.
-
Can handle higher sensible loads from sun-exposed roofs and large window areas.
-
Some cassettes fit between standard 16-inch on-center joists, which makes framing easier.
Possible Limitations
-
Installation is more complex and invasive. It needs sufficient ceiling cavity and condensate drain routing.
-
Service access must be planned. Poor planning can make filter cleaning and coil access a hassle. You should count on periodic maintenance being harder than with a wall unit.
6. DIY-Friendly Mini Split Kit for Budget Additions (e.g., Pre-Charged Line-Set System)
For advanced DIYers, not beginners, who understand the risk and warranty tradeoffs of self-installation, this is the most approachable option.
Why It Stands Out
Pre-charged line sets and quick-connect fittings avoid field refrigerant charging, so you don't need specialized tools or an EPA 608 certification. DIY models like the MRCOOL DIY 5th Gen Hyper Heat deliver reasonable efficiency (SEER2 ~23.5, HSPF2 ~10) and are rated to −22°F in the 12k size. Meanwhile, budget-friendly options like Della's Vario series offer a SEER2 rating of 19 at a lower price point for moderate climates. Still, DIY mini splits still need expertise for proper installation. Sizing, electrical wiring and refrigerant line routing all need to be done right. Improper installation can void the mini split warranty completely.
Best For
-
Detached office sheds or studio additions where you accept more DIY risk to save money on labor costs.
-
Secondary spaces where a repair or replacement won't leave the whole family without heat or AC.
Key Strengths
-
Lower installed cost if you already have electrical and carpentry skills. DIY installation can cut labor costs a lot compared to professional installation.
-
Online availability and clear documentation targeted at you.
-
Reasonable energy efficiency for moderate climates when correctly sized.
Possible Limitations
-
Shorter warranties and more strict fine print around DIY work.
-
Limited support if something goes wrong. A small mistake with the refrigerant line connection can harm compressor life.
7. High-Output System for Glass-Heavy Sunroom Additions
The right pick for three- or four-season rooms with lots of south- or west-facing glass and low insulation levels.
Why It Stands Out
Available in higher BTU sizes (18k–24k) with strong latent capacity and dehumidification controls, this type of system handles rooms that swing from cold mornings to blazing afternoons. A 16 × 12-foot sunroom with three glazed walls, south-facing, will have a cooling load well above what its square footage suggests. Solar heat gain through all that glass dominates the calculation.
Best For
-
Sunrooms built in the 1990s–2000s with single- or double-pane glass and little roof insulation.
-
Enclosed porches being converted to conditioned living space.
Key Strengths
-
High maximum airflow to wash large glass surfaces and reduce hot and cold spots.
-
Good low-speed modulation so the unit doesn't short-cycle on mild days despite its high maximum capacity.
-
Filter and coil access that's relatively easy even when the mini split air conditioner is mounted high for better throw across glass walls.
Possible Limitations
-
Easy to oversize if you rely on "BTU per square foot" alone and ignore window area and which way the room faces. Use a calculator or Manual J before picking a specific model.
-
May need a new 230V circuit and careful condensate drain routing, especially in older enclosed porches.
Comparison
Quick Comparison of the Best Mini Splits for Additions
Here's a fast way to match your addition type to a pick:
-
High-Efficiency Wall-Mounted System is best for typical bedroom, office or in-law suite additions in most US climates.
-
DIY-Friendly Mini Split Kit is best for detached or non-critical additions where you're comfortable trading time and some warranty protection for cost savings.
How To
How to Choose a Mini Split for Your Addition
Depending more on load, climate and construction than brand name, the "best" model is the one that fits your situation. Researching mini splits starts with a good Manual J-style sizing. Enter your ZIP code, room dimensions, insulation level and window details into a load calculator instead of relying on rough rules of thumb. That number tells you what capacity to shop for. Everything else is matching features to your room.
Choose Based on Room Type and Use
A quick example: use 20 BTUs per square foot as a starting point, but recognize how quickly other factors move the number. A 250 sq ft office over a garage with average insulation might need around 7,000–8,500 BTU/h for heating. That same 250 sq ft as a sunroom with three glass walls could need 12,000 BTU/h or more for cooling. The square footage is identical. The loads are not.
Choose Based on Climate and Design Temperatures
Look at your local outdoor design temps before picking a unit. Salt Lake City's cooling design temperature is 95.9°F with a 61.9°F wet bulb. A Gulf Coast city might have similar dry-bulb readings but much higher humidity, which shifts the latent load. For heating, the 99% design temperature tells you the coldest conditions your mini split must handle as primary heat.
Altitude also matters. Our calculator derates the air-heat terms for altitude, so the same infiltration and ventilation airflow carries about 18% less heat in Denver (5,430 ft, factor 0.82) and 14% less in Salt Lake City (4,226 ft, factor 0.86) than at sea level. That changes your load calculation.
Choose Based on Construction, Windows and Insulation
An addition tied into an older house often has different insulation and air sealing than the main house. Our calculator is sliding wall insulation from about R-5 for a 1950 house to R-16 for a 2024 house, roofs from R-10 to R-28, and floors from R-6.7 to R-20 in a straight line by year built. A 1985 addition will sit somewhere in the middle.
Under-insulated roofs are loading a mini split heavily. ENERGY STAR's retrofit attic targets are calling for R-30 in zone 1, R-49 in zones 2–3, and R-60 in zones 4–8 for an uninsulated attic. If you already have three to four inches, add R-25, R-38 or R-49 respectively. Getting the insulation right before buying the mini split lets you buy a smaller, less expensive unit.
Window area and which way they face are mattering just as much. South- and west-facing glass is raising cooling loads a lot. Roof color plays a role too. Our calculator is using a 28°F effective temperature difference across walls and 45°F across a light roof, or 60°F across a dark roof, because sun-baked surfaces run far hotter than outside air. If your addition has a dark shingle roof and big west windows, expect a higher load than the average.
Choose Based on Electrical and Installation Constraints
Electrical panel capacity and available breaker spaces can decide between 115V and 230V units. If you only have room for a 15-amp or 20-amp 120V breaker, that limits you to smaller mini split models, and your electrical work stays simple.
Indoor units should be installed at least 4 to 6 inches from walls and the ceiling for proper airflow. Proper placement of indoor units is ensuring airflow across rooms with nothing blocking it. The distance between indoor and outdoor units should ideally be under 30 feet. Longer runs reduce capacity and may need factory approval from the manufacturer. Condensate drain routing is easy to overlook, especially in sunrooms and attic conversions where gravity drainage may need creative solutions. Each connected part needs to be accessible for future service.
Section 05
Which Mini Split Is Best for Your Addition?
Your situation can be matched to the right category:
-
Choose a high-efficiency wall-mounted system if you're adding a typical 200–500 sq ft bedroom or office in a moderate climate and want the best mix of comfort and efficiency.
-
Choose a DIY-friendly kit if it's a secondary space, you're comfortable with higher DIY risk, and you understand the warranty tradeoffs. The price savings are real, but so are the risks.
Bottom Line
Final Thoughts
Square-foot rules of thumb are a starting point at best. Sun, glass, insulation and climate easily move loads by 30–50% either way. A Manual J-style load calculation is worth the 10–15 minutes it takes before you pick equipment. Run your room through a calculator using your ZIP code, ceiling height, windows and insulation details, then compare that BTU/h number to the capacity ranges of the picks above.
For complex or very large additions, say a 600 sq ft in-law suite with its own bathroom and kitchen, it's worth paying an HVAC designer or contractor for a full Manual J. The cost of that calculation is a fraction of the cost of buying the wrong unit. It ensures the system you install keeps the room comfortable on the hottest and coldest days your site will see.
