If you're searching for the best DIY easy-install multi zone mini split, MRCOOL would probably be the first name on your list. It can take credit for making the category popular. But after comparing both options head-to-head, you might want to look at Zone Air for most installation projects that involve two or more zones.
Quick Answer
Best DIY Multi Zone Mini Split for Most Homeowners
While MRCOOL DIY multi zone systems are widely available and well-known, Zone Air multi zone mini split systems can win on three fronts that matter most for a clean, reliable DIY install: zone flexibility, line set handling and fewer joints that could leak.
With Zone Air, you can put wall-mounted, concealed duct and ceiling cassette indoor air handler types together on a single outdoor condenser. MRCOOL's DIY multi zone range pairs wall-mounted units with its ceiling cassette, but it has no slim concealed duct head. Zone Air also sends custom-cut line sets that are sized to the exact length you measured, while MRCOOL only offers fixed standard lengths. That single difference gets rid of coiled excess tubing and extra fittings, so you can end up with a simpler install and fewer potential leak points down the road.
- DIY ease: Both use pre charged line sets that need no vacuum pump. Zone Air's custom lengths mean less excess tubing to wrestle with.
- Zone flexibility: Zone Air supports wall, cassette and concealed duct on one condenser. MRCOOL DIY multi zone supports wall units and a ceiling cassette.
- Cold climate / hyper heat: MRCOOL's Hyper Heat model operates in temperatures as low as −22°F. Across all indoor unit types, Zone Air standard units perform well down to −13°F.
- Coverage: MRCOOL DIY multi zone runs up to 6 zones on one outdoor unit. Zone Air runs up to 3 zones per outdoor unit, with more indoor handler variety per zone.
Basics
How DIY Multi Zone Mini Splits Work

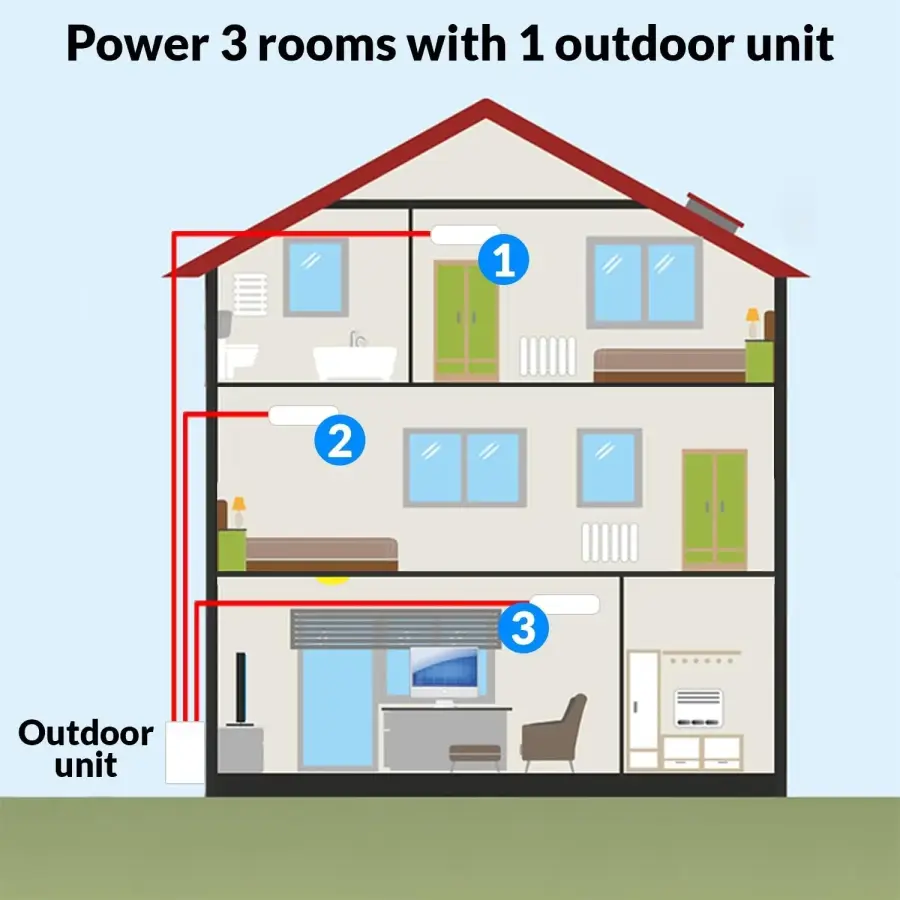

A multi zone mini split uses a single outdoor unit that connects to multiple indoor air handlers, and each one controls a separate room or zone. Instead of ductwork running through your attic, each zone gets its own compact air handler that is connected by a line set (a pair of insulated copper refrigerant lines plus communication cable) and a condensate drain.
- Refrigerant circulates between the outdoor condenser and each indoor air handler, absorbing heat indoors during cooling and releasing it outside (switched during heating).
- Each air handler has its own thermostat and fan speed settings, so you get independent room control over every zone.
- Modern inverter compressors adjust speed continuously to match real-time load, rather than cycling on and off like traditional units.
Some systems are built for colder climates. The MRCOOL 5th Gen DIY Series heats down to −13°F, while the MRCOOL DIY Hyper Heat operates in temperatures as low as −22°F. The MRCOOL DIY 5th Generation series uses eco-friendly R-454B refrigerant. With strong cold-climate performance across wall, cassette and concealed unit types, Zone Air's standard models also heat down to −13°F.
Comparison
Zone Air vs MRCOOL: Which System Is Right for Your Project?
Both brands are going after the DIY market, but the differences can affect your installation experience, the look of the finished project, and how the system holds up over years of use.
Best known for its quick-connect fittings and simple wall-mounted air handler installs, MRCOOL DIY has made a name for itself. MRCOOL systems range from 9,000 to 36,000 BTU. They include the Select Series as a budget-friendly option. MRCOOL multi-zone systems can power between 2 to 6 indoor zones. Wall-mounted air handlers are popular for MRCOOL mini split installations, and ceiling cassettes offer a low-profile installation option.
In three areas, Zone Air is pulling ahead:
- You can pair wall-mounted, slim-duct concealed and cassette indoor air handlers on a single outdoor condenser, so you get the right solution for each room's layout.
- Custom-cut line sets are built to the exact length your space needs, so there's no coiled excess behind the unit and no coupler kits adding extra joints.
- Fewer connections mean fewer opportunities for refrigerant leaks over the life of the system.
MRCOOL's limitations include fixed-length line sets (16, 25, 35 or 50 feet), which often need coiling excess line horizontally behind the air handler. For excess line sets, MRCOOL recommends coiling them horizontally, not vertically. There's no factory custom-cut option, and there is no slim concealed duct head in their DIY multi zone range.
At a glance:
- Up to 6 zones per outdoor unit with MRCOOL DIY, up to 3 with Zone Air
- Typical coverage per zone: 9,000 BTU handles about 350–400 sq ft. 12,000 BTU covers up to ~550 sq ft
- Both brands support hyper heat or cold-climate operation, though MRCOOL's hyper heat options go lower (−22°F vs −13°F)
- Smart controls and phone app integration are available on both platforms
For most multi-room remodels, finished basements and whole-floor updates, Zone Air is the right system where looks and clean line set paths matter.
Sizing
Choosing Multi Zone Capacity
Picking the right system size is what matters more than brand preference. An undersized mini split runs constantly and can't keep up. An oversized unit short-cycles, so rooms end up feeling damp and uncomfortable.
High-level sizing guidance for each zone:
- 9,000 BTU: up to 350–400 sq ft, a typical bedroom, home office or garage workshop
- 12,000 BTU: up to 500–550 sq ft, larger living rooms or open bedrooms.
- 18,000 BTU: up to 750–800 sq ft, open-concept spaces, depending on ceiling height and insulation
Total outdoor unit capacity isn't always the simple sum of all indoor heads. Four 9K air handlers don't always draw a full 36K BTU at the same time because multi zone units are designed around load variation.
Before choosing, consider:
- Local climate, especially if you regularly see below 0°F and need hyper heat performance
- Insulation quality and window area in each room
- Ceiling heights and whether rooms are open or closed
- Whether you need all season comfort (heating and cooling) or cooling only
For whole-home projects above about 2,000 sq ft, it's worth it to get a Manual J load calculation from a pro. It's a small cost that protects a significant investment.
Indoor Units
Wall, Cassette and Concealed Indoor Air Handlers
The biggest day-to-day comfort and aesthetic difference is coming from your indoor air handler style, not the brand on the outdoor unit. Here's what each type looks like in practice:
- Wall-mounted: simplest DIY install. Great for offices, bonus rooms and a garage or shop where wall space is available. Each indoor air handler should be mounted at least 6 inches below the ceiling for proper airflow.
- Ceiling cassette: sits nearly flush with the ceiling, and sends air in four directions. The perfect solution when you don't want a visible wall unit in a living room or primary suite.
- Concealed duct / slim-duct: fully hidden in a soffit, closet or attic. Serves one to three small rooms through short duct runs, with just vents visible at the room level.
With Zone Air, you don't have to choose just one type. A single outdoor condenser can support a mix of all three, so you can add a concealed unit in the hallway, a cassette in the kitchen, and a wall unit in the garage, all on the same system. MRCOOL DIY multi zone systems pair wall units and cassettes but don't offer a slim concealed duct head.
Line Sets
Why Custom-Cut Line Sets Make DIY Installs Easier
A line set is the pair of insulated copper lines that carry refrigerant between the outdoor condenser and indoor air handler, and it comes with signal wiring. It's the main part of your system, and how it's handled during install determines long-term reliability.
Available in fixed sizes (16, 25, 35, 50 feet), MRCOOL DIY line set lengths come in standard lengths only. The quick connect line set is pre-charged and easy to use, and no vacuum is needed for the installation process. But if your run is 20 feet, you buy a 25-foot set and coil five feet of excess. A run longer than 50 feet means joining two sets with a coupler kit, if the unit's maximum line length allows it, and that adds fittings and potential leak points.
With its custom-cut line set approach, Zone Air fixes this. Lines are factory-fitted to the exact length your layout needs. There's less excess tubing to hide, it's easy to maintain proper slope for condensate drainage, and fewer joints means fewer potential points of future refrigerant leaks.
Line set best practices:
- Keep line sets as short and direct as practical between indoor and outdoor units
- Avoid tight 90° kinks. Use wide gentle curves to protect tubing and insulation
- Protect all exterior line sets in UV-resistant covers for safety and a clean environment around the unit
- Never coil line sets vertically. Horizontal coils only if excess can't be avoided
For multi zone projects, especially where multiple air handlers are located far from the outdoor unit, Zone Air's custom line set options are a major reason we prefer them over MRCOOL.
Install
DIY Multi Zone Mini Split Installation Steps
Before you drill anything, review local electrical and building codes. Even confident DIYers should consider hiring a licensed electrician for panel and disconnect work. Designed for DIY installation, MRCOOL systems need no specialized HVAC tools, but electrical certification requirements vary by location.
- Plan zones: choose locations for each indoor air handler and the outdoor unit. Account for wall space, ceiling height and airflow patterns in each room.
- Mount indoor brackets: drill wall penetrations (usually 3–3.5 inches) for each line set and drain line.
- Hang each indoor air handler: route the line set group through the wall with proper downward slope on the drain hose. How long does installation take? It can be completed in just a few hours per unit.
- Position the outdoor condenser: maintain correct space (12–24 inches behind, 18+ inches above expected snow line in colder climates). A wall bracket or raised pad is ready protection against heavy snowfall when running hyper heat systems.
- Connect line sets and communication wiring: tighten flare or quick-connect fittings to manufacturer torque specs. With Zone Air's custom-cut line sets, this step involves fewer connections and no coil management.
- Complete electrical connections: from panel to outdoor disconnect, then to outdoor unit. You'll need to run low-voltage connections to each indoor head. No special tools beyond standard electrical equipment are needed.
MRCOOL provides installation tips for a smooth DIY multi zone setup, and their pre charged line sets eliminate the need for vacuum pumps or refrigerant handling. Zone Air's custom lengths simply reduce the physical work with excess line and deliver a cleaner finished look.
You can usually complete a two or three zone install over a weekend. A full 4–6 zone whole-floor project may stretch across two weekends, so plan for that and find a helper for mounting the outdoor condenser.
Controls
Controls, Efficiency and Long-Term Reliability
Once your system is running, the daily payoff is quiet, efficient comfort with simple control from remote controls or your phone.
- Handheld remote for each indoor air handler with temperature and fan settings you can adjust room by room
- Wi-Fi app control for scheduling, monitoring and remote access while away from home. Smart controls are available for managing system temperatures on both brands
- Compatibility with Google Assistant and Amazon Alexa for voice control in many models
MRCOOL DIY systems have efficiency ratings up to 23.6 SEER2, while Zone Air's similar 12,000 BTU 230V models reach about 24 SEER2. Both brands deliver efficient performance thanks to inverter compressors that adjust output rather than cycling, and multi zone setups are more efficient because you only condition occupied rooms.
For long-term reliability, fewer line set joints matter. Zone Air's custom line sets reduce potential leak points. Beyond that, keep your system in top shape by cleaning indoor air handler filters monthly, keeping the outdoor unit coil clear of leaves and snow, and checking line set insulation each season for UV or pest damage.
For homeowners who want an easy installation with flexible indoor options and cleaner line set paths, Zone Air multi zone mini split systems are the smarter long-term investment over MRCOOL DIY, especially for multi-room projects where you need a comfortable, efficient environment across every zone. You can learn more about your options, measure your spaces and shop for the configuration that fits your home.
